1/8 Stainless Steel Small Automatic Sheet Metal Bending Machine



Inquire Add to Basket

Port:
Shanghai, China
Production Capacity:
100 Sets/Month
Payment Terms:
T/T, Western Union
Model NO.:
HPB 30T1200
Type:
Press Brake
System:
Da53t
Backgauge:
500mm Distance, Ball Screw, Linear Guide Rail
Bending Angle Programmed:
Yes
Max Bending Thickness:
4mm
Max Bending Legnth:
1000mm
Clamping System:
Quick Clamp
Main Motor:
Siemens
Electrical Components:
Schneider
Hydraulic Valve:
Rexroth
Weight:
2500kg
Trademark:
LZK
Transport Package:
20gp
Specification:
1200X1300X1750mm
Origin:
China
HS Code:
8462219000
Waterproof Rating:
IPX-8
Warranty:
2-year
Condition:
New
Certification:
RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
Automation:
Automatic
Suitable for:
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Sheet

Product Description

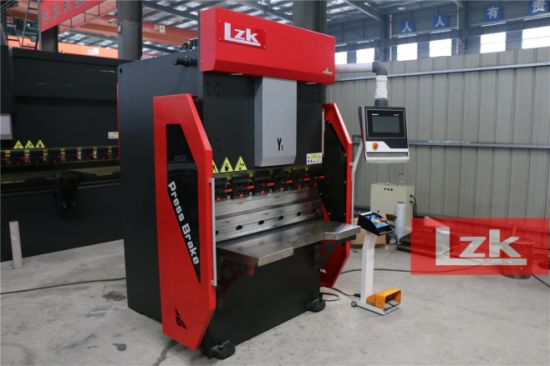

1/8 stainless steel small automatic sheet metal bending machine

Energy saving type cnc press brake with main motor as servo motor.

1. The electro-hydraulic servo CNC bending machine adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.

2. The electro-hydraulic servo CNC bending machine adopts a full-featured back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the backgauge. Imported originals such as guide rails, screws and bearings are used to ensure the accuracy of the back gauge.

3. The body of the electro-hydraulic servo CNC bending machine adopts an integral welding structure, which is convenient for transportation and processing, and can ensure the accuracy of the machine.
