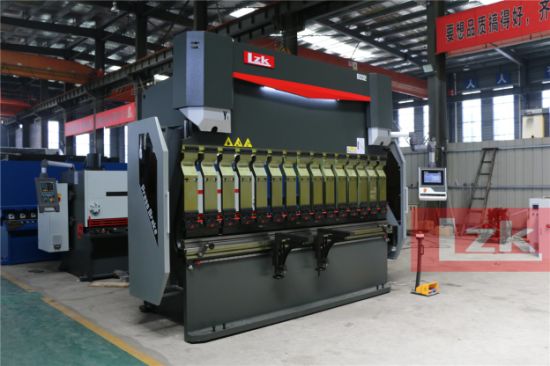

3.2 Mtr Automatic Ms Sheet Bending Machine 80ton

  • Shanghai, China

  • 100 Set/Month

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • HPB-80T3200

  • Press Brake

  • Da53t

  • 80ton

  • 3200mm

  • 3mm with Length of 3m

  • 7200kg

  • Can Be Added

  • Automatic CNC Compensation

  • Bosch Rexroth

  • Siemens Motor

  • Schneider

  • lzk

  • 20gp

  • 3850× 1850× 2550mm

  • China, Maanshan

  • 8462219000

  • 2 Years

  • IPX-8

  • 2-year

  • RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL

  • Automatic

  • Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Stainless Steel

3.2 mtr automatic MS sheet bending machine 80ton
3.2 Mtr Automatic Ms Sheet Bending Machine 80ton
Energy saving type cnc press brake with main motor as servo motor.
1. The electro-hydraulic servo CNC bending machine adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.
2. The electro-hydraulic servo CNC bending machine adopts a full-featured back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the backgauge. Imported originals such as guide rails, screws and bearings are used to ensure the accuracy of the back gauge.
3. The body of the electro-hydraulic servo CNC bending machine adopts an integral welding structure, which is convenient for transportation and processing, and can ensure the accuracy of the machine.
3.2 Mtr Automatic Ms Sheet Bending Machine 80ton
DELEM DA53T CNC Control System
3.2 Mtr Automatic Ms Sheet Bending Machine 80ton
Special designed bending tools for water tank bending usage
Quick release clamp system
Sliding front support arms
3.2 Mtr Automatic Ms Sheet Bending Machine 80ton
CNC mechanical/automatic crowning/compensation system
KACON foot pedal
3.2 Mtr Automatic Ms Sheet Bending Machine 80ton
Double linear guide rails, fingers can be moved along
X axes with servo motor controlled, R axis can be added if needed
3.2 Mtr Automatic Ms Sheet Bending Machine 80ton
Siemens Main Motor, can be replaced with servo motor for energy saving
Bosch Rexroth hydraluic valve system
Sunny oil pump
3.2 Mtr Automatic Ms Sheet Bending Machine 80ton
Schneider main electric components
ESTUN servo drive
German customer bought our tandem press brake for long sheet bending, photos were taken by our engineer
when dis aftersale service.

3.2 Mtr Automatic Ms Sheet Bending Machine 80ton
Our Russis customer bought three sets of cnc press brake from us, they are manufacture of Yacht.
3.2 Mtr Automatic Ms Sheet Bending Machine 80ton
Customer form different countries come for inspection and cooperation.
3.2 Mtr Automatic Ms Sheet Bending Machine 80ton
3.2 Mtr Automatic Ms Sheet Bending Machine 80ton
