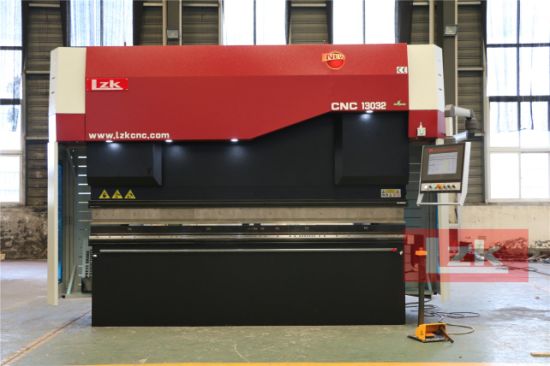

China 10 Feet 1/4 Inch Metal Sheet Bending Machine

  • From payment to delivery, we guarantee your trading security without charges.

  • EPB-130T3200

  • Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Galvanized Sheet

  • Press Brake

  • Esa S640

  • Y1, Y2, X, R, Z1, Z2

  • 3200mm

  • 5mm for 3m Sheet

  • 9500kg

  • 600mm Distance, Ball Screw and Linear Guide Rail

  • Servo Motor

  • 5.7kwx2

  • Schneider

  • Bosch-Rexroth

  • Wila Hydraulic Clamping System

  • Italy Givi

  • LZK

  • 20gp

  • 3850× 1850× 2600mm

  • China

  • 8462219000

  • 4100.00cm * 1700.00cm * 2000.00cm

  • 6500.000kg

  • Shanghai, China

  • 100 Sets/Month

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

China 10 feet 1/4 inch metal sheet bending machine

China 10 Feet 1/4 Inch Metal Sheet Bending Machine
--EPB full servo bending machines are manufactured in accordance with the most stringent quality standards. The Q345E steel frame is annealed at 1200 degrees before being precisely machined and carefully assembled by experienced professionals.
--Because of their high speed and high precision, they are widely used in robotic bending cells; EPB works with high-end robot manufacturers such as Kawasaki, Kuka, and Yaskawa to ensure that their machines are well-suited for high-speed robotic bending applications.
China 10 Feet 1/4 Inch Metal Sheet Bending Machine
With ESA S640 control system, can also be replaced with DELEM system, LZ1000 system
China 10 Feet 1/4 Inch Metal Sheet Bending Machine
Main electrical components from Schneider, with double servo motor

China 10 Feet 1/4 Inch Metal Sheet Bending Machine
--The EPB bending machine is equipped with CNC mechanical crowning/compensation
--The EPB bending machine is equipped with a fast front-loading quick fixture as standard, which further saves tool change time and improves efficiency.
China 10 Feet 1/4 Inch Metal Sheet Bending Machine
--WILA hydrauilc clamping system
China 10 Feet 1/4 Inch Metal Sheet Bending Machine
Back gauge with X, R, Z1, Z2 axes, servo motor controlled
China 10 Feet 1/4 Inch Metal Sheet Bending Machine
--The EPB bending machine works on the principle of dual servos, and the Y1 (left plunger) and Y2 (right plunger) axes are controlled by powerful tuke servo motors. This design can achieve the highest speed and accuracy, and ensure extremely low operating costs.
--ITALY GIVI greating ruler
--KACON footpedal

Our press brakes work well in customer's workshop
China 10 Feet 1/4 Inch Metal Sheet Bending Machine
German Customer
China 10 Feet 1/4 Inch Metal Sheet Bending Machine
Russia Customer, manufacturer of Yacht

Customer come from different countries for cooperation and inspection

China 10 Feet 1/4 Inch Metal Sheet Bending Machine
China 10 Feet 1/4 Inch Metal Sheet Bending Machine
