China Economical Hydraulic CNC Press Brake Machine

  • Shanghai, China

  • 100 Set/Month

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • WC67D-125T4000

  • Press Brake

  • Delem Da52s

  • 4400mm

  • 4mm

  • 500mm

  • 3200mm

  • 200mm

  • 480mm

  • 400mm

  • 2 Pieces

  • 2 Pieces

  • Servo Motor

  • Schneider

  • Bosch Rexroth

  • Sunny

  • One Set with Machine for Free

  • LZK

  • 40hq

  • 4400x1850x2600

  • Maanshan, China

  • 8462219000

  • 2 Years

  • IPX-8

  • 2-year

  • RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL

  • Automatic

  • Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel

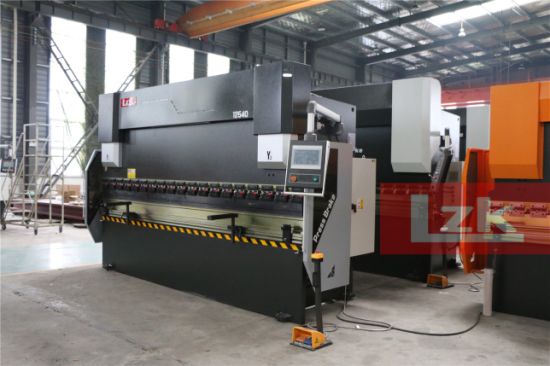

China economical hydraulic cnc press brake machine
China Economical Hydraulic CNC Press Brake Machine
Features
1. The frame adopts steel structural parts, the left and right vertical plates, the workbench and the pressure plate are welded into a whole structure. After welding, the internal stress is eliminated by tempering, so the overall rigidity is high and the stability is high.
2. The main components such as the machine body and the slider are analyzed by ANSYS finite element analysis software to ensure the reliability of the machine tool.
3. Hydraulic upper transmission, stable and reliable.
4. Bosch Rexroth valve control, high synchronization accuracy.
5. The distance of the back gauge and the stroke of the slider are controlled by the numerical control system, which is convenient and quick.
6. The oil cylinder has been forged, quenched and tempered, finely ground, hard chrome plated and other processes, and are equipped with imported sealing rings to help customer service oil leakage.
7. The hydraulic system adopts oil circuit integrated hydraulic system, which reduces pipeline installation and has a beautiful and simple appearance.
China Economical Hydraulic CNC Press Brake Machine
Quick clamps
China Economical Hydraulic CNC Press Brake Machine
Punch and die can be customized according to customer product
China Economical Hydraulic CNC Press Brake Machine
Backgauge finger blocks on double lindar guide rail
China Economical Hydraulic CNC Press Brake Machine China Economical Hydraulic CNC Press Brake Machine
Back gauge with X, R axes
Servo motor controlled
China Economical Hydraulic CNC Press Brake Machine
CNC Cronwning/compensation
KACON footpedal
China Economical Hydraulic CNC Press Brake Machine
With beam structure
Main motor Siemens
Fagor grating ruler
SNC53 control system:
1. For the backing material (X) of the bending machine, the position of the block in the left and right cylinders (Y1, Y2), the lifting position of the rear block (R), the left and right gears (Z1, Z2), the pressure (P) and the deflection compensation (Hydraulic, mechanical) (V) for automatic positioning control.
2. The parameters can be set to single side and bilateral positioning mode, and the single side positioning mode can effectively eliminate the screw drive gap.
3. The system has a soft limit function.
4. Power-off position memory function.
5. The display scale factor can be set according to the screw pitch and the transmission ratio. The display scale factor can be automatically calculated by the numerical control system through the teaching operation function, and the operation is very simple.
6, single step insert mode, very practical and convenient.
7, multi-step programming function, can achieve multi-step automatic operation.
8. Retreat the escape function to avoid interference between the back gauge device and the workpiece to reduce wear.
9, integrated pump start and switch adjustment, single, continuous function in the system.
10. With password protection.
11, large arc programming function.
12, IO port flexible configuration and valve group configuration function.
13. The raster real-time feedback slider position.
China Economical Hydraulic CNC Press Brake Machine
Schneider main electrical components
China Economical Hydraulic CNC Press Brake Machine
Workshop in stock machines
China Economical Hydraulic CNC Press Brake Machine
Russia customer, Yacht manufacturer, bought three sets of cnc press brake in use
China Economical Hydraulic CNC Press Brake Machine
Customer visit and inspect for cooperation from different countries
