High Precision Hydraulic CNC Press Brake with 100ton Pressure

  • Shanghai, China

  • 100 Set/Month

  • L/C, T/T, D/P, Western Union, Paypal, Money Gram

  • HPB 100T3200

  • Da66t

  • 100ton

  • 3200mm

  • 4mm with Length of 3m

  • 7900kg

  • Yes

  • Automatic CNC Compensation

  • Bosch Rexroth

  • Energey Saving Servo Motor

  • Schneider

  • lzk

  • 40hq

  • 3800× 1750× 2580mm

  • China, Maanshan

  • 8462219000

  • IPX-8

  • 2-year

  • RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL

  • Automatic

  • Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel, Mild Steel, Stainless Steel

  • Press Brake

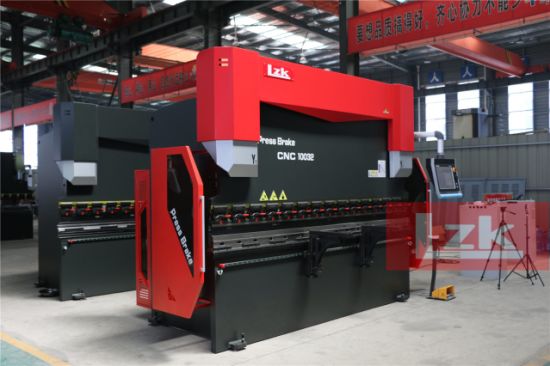

High precision hydraulic cnc press brake with 100ton pressure
High Precision Hydraulic CNC Press Brake with 100ton Pressure
Energy saving type cnc press brake with main motor as servo motor.
1. The electro-hydraulic servo CNC bending machine adopts a hydraulic convex automatic compensation system to solve the influence of the deformation of the slider during the bending process on the quality of the workpiece. The amount of compensation is automatically adjusted by the CNC system, which is convenient and accurate.
2. The electro-hydraulic servo CNC bending machine adopts a full-featured back gauge mechanism, which can choose to control multiple back gauge shafts. Functional parts in the backgauge. Imported originals such as guide rails, screws and bearings are used to ensure the accuracy of the back gauge.
3. The body of the electro-hydraulic servo CNC bending machine adopts an integral welding structure, which is convenient for transportation and processing, and can ensure the accuracy of the machine.
High Precision Hydraulic CNC Press Brake with 100ton Pressure
DELEM DA66T CNC SYSTEM
Quick clamp
Electrical crowning
One set of standard V8+V12 die, it can also be customized by customer's product
Foot pedal
High Precision Hydraulic CNC Press Brake with 100ton Pressure

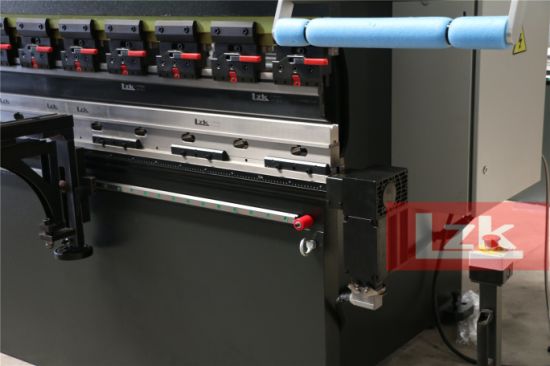

Back guage is X, R, X1 axes
Ball screw and linear guide rail
Servo motor controlled X, R, X1 axes
High Precision Hydraulic CNC Press Brake with 100ton Pressure
Light curtain for safety protection
With 2 backgauge fingers as standard
High Precision Hydraulic CNC Press Brake with 100ton Pressure
Main motor is with SERVO MOTOR, good for energy saving, low noise, longer life
Sunny oil pump
Bosch Rexroth valve
High Precision Hydraulic CNC Press Brake with 100ton Pressure
Schneider main electrical components
Servo drive

German customer bought our tandem press brake for long sheet bending, photos were taken by our engineer
when dis aftersale service.

High Precision Hydraulic CNC Press Brake with 100ton Pressure
Our Russis customer bought three sets of cnc press brake from us, they are manufacture of Yacht.
High Precision Hydraulic CNC Press Brake with 100ton Pressure
Customer form different countries come for inspection and cooperation.
High Precision Hydraulic CNC Press Brake with 100ton Pressure
High Precision Hydraulic CNC Press Brake with 100ton Pressure
